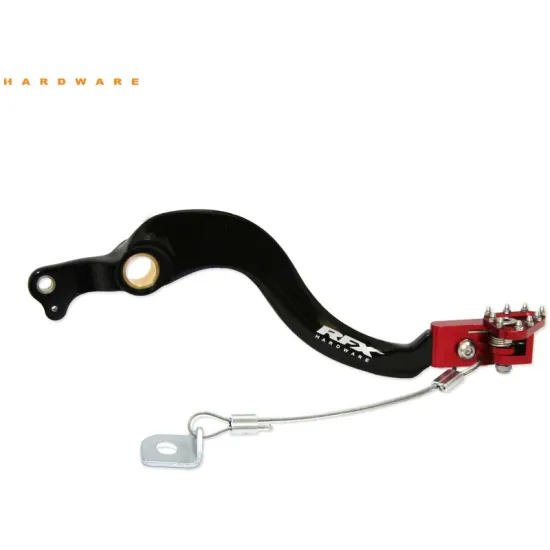

RFX Pro Flexi-Tip Rear Brake Pedal — Black/Red (FXRB1090099RD)
Upgrade your bike's braking control with the RFX Pro Series Flexi-Tip rear brake pedal. Engineered for off-road racing and aggressive trail riding, this pedal combines aerospace-grade materials, impact-reducing tip technology and robust construction to deliver reliable performance and damage resistance when it matters most.
Key Highlights
- Forged 7075-T6 aluminium arm for outstanding core strength and weight savings.
- CNC-machined billet flexible tip with a spring-loaded, rotatable action to absorb impacts and reduce tip damage.
- Steel insert teeth on the tip for superior grip in muddy or wet conditions.
- Smooth, OEM-style forged shaft to minimise wear and maximise service life.
- Integrated "brake snake" cable loop to help prevent shaft bending during collisions.
- Hard anodised black/red finish with laser-etched RFX logo for corrosion resistance and a premium look.
Technical Specifications
| Manufacturer | RFX |
|---|
| SKU | FXRB1090099RD |
|---|
| Material | 7075-T6 aerospace aluminium (arm), CNC billet aluminium tip, steel insert teeth |
|---|
| Tip | Spring-loaded, rotatable CNC flexible tip with mechanical stop |
|---|
| Shaft | OEM-type forged shaft, smooth finish to reduce surface wear |
|---|
| Finish | Colour anodised (black/red) with laser-etched logo |
|---|
Benefits & Why It Matters
- Reduced repair costs — the rotating tip spins on impact to prevent catastrophic breakage.
- Better bite in poor conditions — steel teeth maintain pedal contact even in mud.
- Stronger core — forged arm and T6 heat treatment improve tensile strength and durability.
- Crash-friendly design — integrated brake snake and tip stop help prevent pedal or cover damage after impacts.
Typical Use Cases
Designed for motocross, enduro, trail riding and competitive off-road racing where impacts, ruts and heavy use put standard brake pedals at risk. Ideal for riders who want a durable, serviceable upgrade that minimises downtime.
Fitting & Installation (Overview)
- Note the current pedal height relative to the footpeg before removal.
- Remove the rear R-clip/split pin and pivot bolt to free the old pedal; detach the return spring and retaining dowel.
- Remove oil seals from the old pedal and clean parts thoroughly (use a multi-purpose lube such as Maxima MPPL).
- Fit seals to the new pedal, re-install clevis, locating pin and split pin; re-fit the return spring.
- Apply waterproof grease to the pivot bolt, align holes and torque to manufacturer specs. Replace R-clip/split pin.
- Adjust pedal height and free play by turning the plunger bolt in the clevis and locking the nut.
- Fit the brake snake: for Japanese models replace the lower engine mount washer with the brake-snake washer; for KTM loop the cable around the lower mount and crimp per instructions. Set tension allowing pedal travel and trim excess cable.
What's in the Box
- RFX Pro Flexi-Tip Rear Brake Pedal (black/red finish)
- CNC flexible tip with steel teeth and mechanical stop
- Brake snake cable and mounting washer (model-specific usage)
- Laser-etched RFX branding
Compatibility & Notes
This pedal is a direct-fit style component designed for many off-road bikes. Check your model's pivot bolt and clevis arrangement before ordering. Follow the bike manufacturer torque settings and maintenance intervals. When in doubt, have a qualified mechanic complete the installation.
