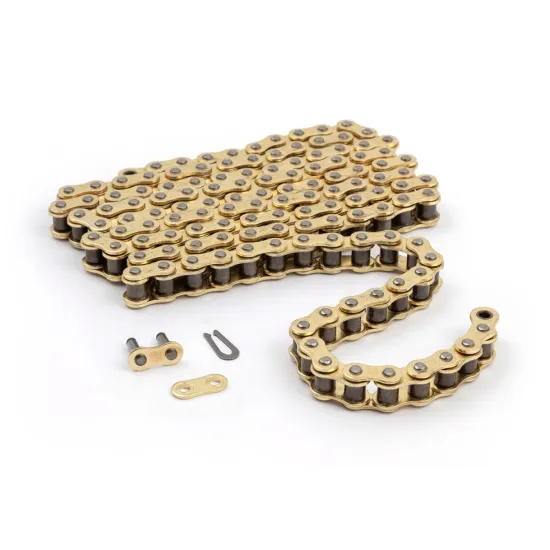

Tsubaki Road Chain 530 RQ1 112 links 55212530112

The Tsubaki Road Chain 530 RQ1 is a high-performance sealed 530-pitch motorcycle drive chain developed for powerful road RQ1 series is engineered for high-performance road motorcycles with more than 150 hp and uses gold-coloured outer plates with low-friction X-ring sealing for demanding street and sport use.

Key features

High-strength 530 sealed X-ring road chain developed for high-performance motorcycles producing more than 150 hp, while rated up to around 200 hp for dependable power transfer.
Gold-coloured outer link plates deliver a premium appearance and added corrosion resistance, matched with durable steel inner links for long-term reliability.
Low-friction X-ring seals retain factory-applied lubricant inside the chain while reducing drag compared with conventional O-ring chains, extending service life and improving efficiency.
Pre-stretched construction and quad-staked rivets help minimise initial elongation and increase load capacity under hard acceleration and heavy loads.
112-link length suitable for many large-capacity road motorcycles specified for a 530-pitch chain and can be shortened to custom length to match individual sprocket combinations.
Supplied with a hollow rivet-type master link for secure, permanent installation using standard chain riveting tools.

Technical specifications

Brand	Tsubaki
Series	Road Chain RQ1
Chain type	Sealed X-ring road drive chain
Pitch	530 (5/8" x 3/8"), roller diameter approx. 10.16 mm
Number of links	112
Colour	Gold outer plates / steel inner plates
Average tensile strength	Approx. 45.1 kN
Recommended engine output range	Developed for road motorcycles over 150 hp, with maximum permitted output around 200 hp
Seal type	Low-friction X-ring
Master link	Hollow rivet-type connecting link included
Application	High-performance road, sport and sport-touring motorcycles requiring a 530 sealed chain

Benefits in use

High tensile strength and robust plate and pin construction support strong acceleration, heavy loads and sustained high-speed riding on powerful machines.
X-ring sealing significantly reduces internal friction and wear, helping the chain maintain consistent length, smoother operation and stable performance over a long service life.
Factory pre-stretching reduces the amount of adjustment typically required after installation, so the drive system can remain within correct tension for longer intervals.
Gold outer plates provide a clean, high-end visual finish that complements modern sport, naked and touring motorcycles while offering additional surface protection.
Precision manufacturing and quad-staked rivets improve resistance to shock loads from aggressive throttle inputs, quick-shifter use and frequent stop‑and‑go riding.

Typical applications

The Tsubaki Road Chain 530 RQ1 112-link variant is commonly selected for large-capacity road motorcycles that specify a 530-pitch sealed chain and operate in high-performance conditions, including sportbikes, hypersport models and heavy sport-touring is suitable for standard gearing setups or modest changes in sprocket size, provided the final chain length is matched correctly during installation.
