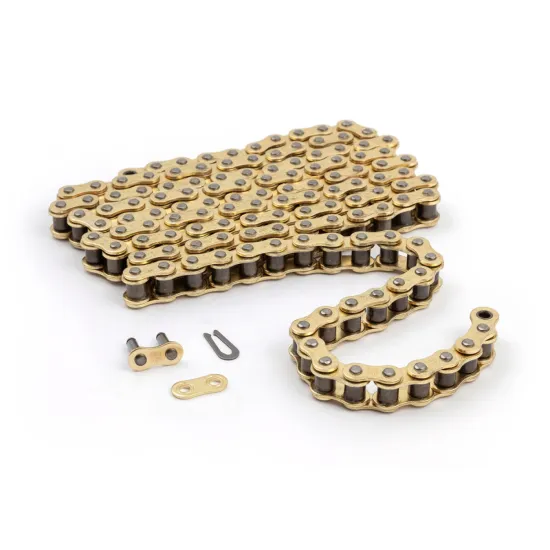

Tsubaki Road Chain 530 RQ1 124 links 55212530124
The Tsubaki Road Chain 530 RQ1 124 links is a high-performance X-ring drive chain from Tsubaki's RQ1 road series, engineered for powerful motorcycles and demanding road specifically for machines with more than 150 horsepower, it combines very high tensile strength with reduced friction and long service life.
Key Features
- High-performance Tsubaki RQ1 road series chain for motorcycles over 150 hp
- 530 pitch X-ring sealed chain for reduced friction and extended wear life
- 124-link length for a wide range of large-capacity road motorcycles
- Gold-coloured outer plates with steel-grey inner plates for a premium look
- Approx. 45.1 kN tensile strength for high load capacity and reliability
- Pre-stretched by the manufacturer to minimise initial elongation
- Supplied with a rivet-type (hollow pin) master link for a secure connection
Benefits
- Optimised for high power: The RQ1 series is developed for high-performance road bikes, providing a robust drive solution for modern sport, naked and sport-touring machines with substantial horsepower.
- Low-friction X-ring design: The special X-ring profile reduces drag compared with traditional O-ring chains while maintaining effective sealing of internal lubrication, helping the chain run smoother and last longer.
- High durability under load: With an approximate tensile strength of 45.1 kN and a design intended for power levels up to around 200 hp, the chain is suited to hard acceleration, high-speed cruising and frequent load changes.
- Stable adjustment: Factory pre-stretching reduces the amount of initial elongation, so the chain maintains correct tension more consistently after installation.
- Corrosion resistance and appearance: Gold outer plates not only enhance aesthetics but also contribute to surface protection in daily road use.
Typical Applications
- Replacement drive chain for large-displacement sport motorcycles using 530 pitch
- High-torque naked and hypernaked bikes operated at sustained highway speeds
- Sport-touring and performance touring motorcycles where longevity and strength are important
- Powerful road bikes occasionally used for track days that require a robust, sealed road chain
Technical Specifications
| Specification | Value |
| Manufacturer | Tsubaki |
| Series | Road RQ1 high-performance |
| Chain type | Sealed X-ring motorcycle drive chain |
| Pitch | 530 (5/8" x 3/8") |
| Number of links | 124 |
| Seal type | Low-friction X-ring |
| Outer plate colour | Gold |
| Inner plate colour | Steel-grey |
| strength | 45.1 kN |
| Maximum permitted power (approx.) | Up to about 200 hp |
| Overall width (approx.) | 25.2 mm |
| Master link type | Rivet-type (hollow pin) connecting link |
| Recommended use | High-performance road motorcycles exceeding 150 hp |
Position in the Tsubaki Range
Within Tsubaki's road chain lineup, the RQ1 series sits at the top as a chain specifically intended for high-output offers maximum strength and reliability, making it suitable for riders who require a robust, low-maintenance sealed chain on demanding road-going performance motorcycles.
