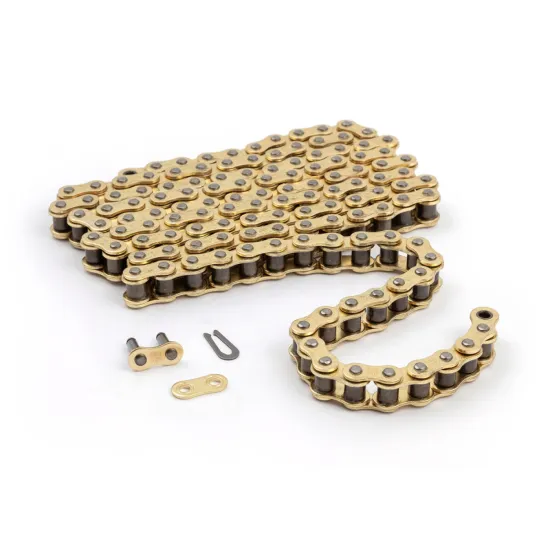

Tsubaki Road Chain 530 RQ1 – 130 Links

The Tsubaki 530 RQ1 road chain with 130 links is a high-performance sealed drive chain designed for powerful road motorcycles that require maximum strength, reliability and reduced friction in a 530-pitch configuration.

Key Features

High-performance 530-pitch sealed X-ring drive chain for road use
Developed for high-output motorcycles, recommended for machines over 150 hp
130-link length suitable for many large-capacity road bikes using 530 chains (can be shortened to match the required length)
Gold outer plates with contrasting inner plates for a premium appearance and enhanced corrosion resistance
Low-friction X-ring sealing to keep factory-applied lubricant inside the chain while minimizing power loss
Pre-stretched and precisely assembled to reduce initial elongation and extend service life
High tensile strength construction for consistent power transfer under heavy loads
Quad-staked rivet pins and robust side plates for excellent fatigue resistance
Supplied with a hollow-pin rivet-type master link for a secure, permanent connection

Technical Details

Brand	Tsubaki
Series	RQ1 Road Series
Chain type	Sealed X-ring final drive chain
Pitch	530 (5/8" x 3/8")
Number of links	130
Recommended application	High-performance road motorcycles over 150 hp
Approximate maximum engine output	Suitable for high-output machines up to around 200 hp when correctly specified
Sealing	Low-friction X-ring
Outer plate color	Gold
Construction	Pre-stretched, high tensile strength chain with quad-staked rivet pins
Master link type	Hollow-pin rivet-type connecting link

Typical Applications

This Tsubaki 530 RQ1 130-link chain is intended for demanding road motorcycle applications where durability, stability and smooth power delivery are priorities.

High-performance road bikes and superbikes using 530-pitch drive chains
Large-capacity V-twin cruisers and touring motorcycles requiring a strong, long-life chain
Upgrades from standard or lower-spec sealed chains to a stronger, lower-friction X-ring design
Custom builds and tuned engines where higher torque and power place additional load on the final drive

The 130-link length offers flexibility for stock and modified gearing setups, and the chain can be shortened by a qualified technician to match the exact wheelbase and sprocket combination of the motorcycle.
